DIA 25mm Cast Spherical Seat Spherical Washers SG42 Casting Bail Anchor Assemblies

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC856
Certification:	ISO9001,CE,SGS
Model Number:	856

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	250,000 pcs monthly

Contact Now

Detailed Product Description

Item Name:	Spherical Seat	Material:	Ductile Iron
Process:	Iron Casting	Finish:	Sandblasting
Application:	Mining Industry	OEM:	Available

DIA 25mm Cast Spherical Seat Spherical Washers SG42 Casting Bail Anchor Assemblies

Description

The spherical washers are self aligning and provide full hex nut bearing.

They can be used with Domed Plates or with thicker standard plates with chamfered holes.

Use a hardened flat washer between the nut and spherical washer.

Specification

Nominal Bar Diameter	Thickness	Outside Dome
#6 - 3/4" (19 mm)	35/64” (14 mm)	2" (51 mm)
#7 - 7/8" (22 mm)	39/64” (15 mm)	2-1/4" (57 mm)
#8 - 1" (25 mm)	5/8” (16 mm)	2-1/2" (64 mm)

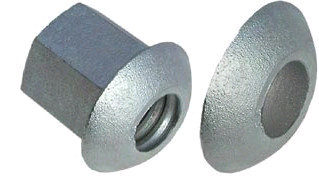

DIA 25mm Cast Spherical Seat Spherical Washers SG42 Casting Bail Anchor Assemblies 0

FAQ

How can I get some samples of Iron casting,cast ductile iron,cast grey iron part?
If you need,we will offer you samples for free,but new customers are expected to pay express charge.

Do you provide customized parts?
Yes,Customers give us drawings and we will manufacture accordingly.

Can you make castings based on our sample of Iron casting,cast ductile iron,cast grey iron and cast steel part?
Yes,we can make measurement based on your samples to make drawings.
