Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge

  • Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge
  • Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge
  • Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge
Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge
Product Details:
Place of Origin: Mainland China
Brand Name: NC812
Certification: ISO9001,CE,SGS
Model Number: 812
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $0.6
Packaging Details: Wooden Case
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Material: 40Cr PC Strand Diameter: 12.7mm-15.24mm
Surface Treatment: Electroplate Length: 52mm
Sample: Available Inspection: 100%
High Light:

post tension accessories

,

prestressed anchorage

,

post tensioning system

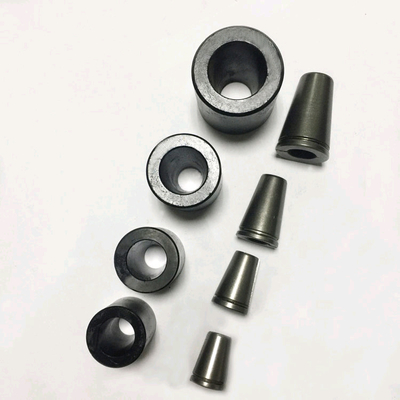

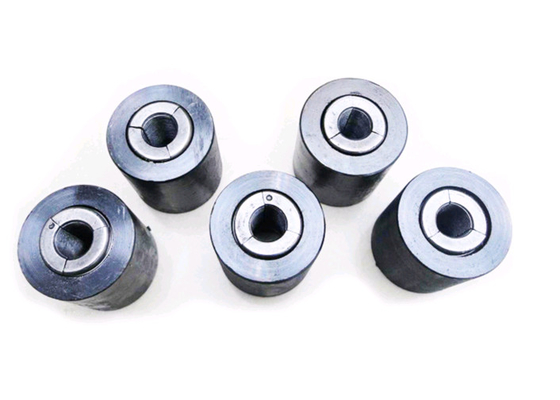

Single Hole Anchorage / Anchor Barrel With Wedge Anchor Grip Wedge

Description

Single Hole Anchorage can be used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm/15.2mm.Other size standards can be customized, click customer service to contact us.

The hardness of anchorage: GB/T 14370-2015.

It has been verified by pratice that various type of CM-W anchor ,also can be used for the different kinds of strand wires which is ASTM/BS/JIS/JIG/AS and other international standards.

Product Details

Application Highways,railways,bridges,building construcitons
Certification ISO9001:2015
Raw material of wedge 20CrMnTi
Raw material of anchor head 40Cr
Surface treatment Heat treatment
Hardnees of wedge HRA79.5-86
Hardnees of anchor head HRC20-33
Packing Plastic bag+carton+wooden case
Delivery time 10 days
Payment terms T/T,L/C

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 0

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 1

Quality Control



Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 2



1 Raw material control

As the strategic partner and big customer of China's biggest steel company, Capital Steel Group, we have

stable suppliers and high quality raw materials.



2 ISO9001: 2000 certificate

All of our equipments, production flow, and quality control system have passed ISO9001: 2000 certificate since 1997.



3 Strict product test

There are 260 employees in our company, including 35 experts with engineer titles. We have 3 test laboratories,

15 quality control commissioners and 11 workshops to ensure the accomplishment of the export orders.



The leading end and tail end of every coil will be cut off and tested by advanced inspection equipments and the testing samples will be kept in storage till the pc strands of the same lot are used by customers.



FAQ



Q: Do you provide samples? Is it free or extra ?

A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

Q:How long is your delivery time?

A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

Q:What is your terms of payment?

A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
