CE Standard Ductile Iron Pipe Fittings / AWWA C153 MJ×MJ Mechanical Joint Reducer

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC551
Certification:	ISO9001,CE,SGS
Model Number:	551

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$1-50
Packaging Details:	Crate
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Part Name:	Reducer	Material:	Ductile Iron
Type:	Mechanical Joint Pipe Fitting	Process:	Lost Foam Technique
Test:	100% Hydraulic Pressure	OEM:	Available
High Light:	pipe fitting components , ductile iron pipe fittings

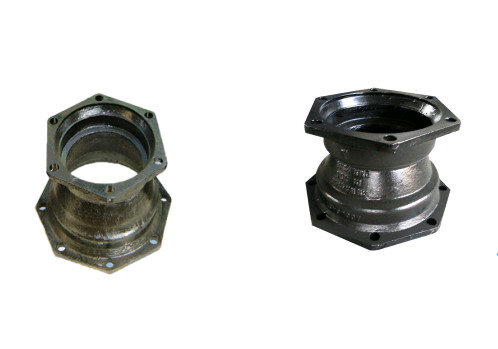

AWWA C153 MJ×MJ Reducer / Mechanical Joint Reducer for Pipe Fittings

Description

Ductile iron pipe fittings are mainly used for transferring the drinkable water and acid . With special ductile iron material, this series of fittings can also be used for transferring the acid in the acid plant or transferring slurry.

Pipe Fittings surface shall be smooth and free from sand holes, blow holes, distortion or any other defects.

We have been specializing in manufacturing high quality ductile iron potable / sewage water pipeline products in China for more than 25 years. Ductile iron and cast iron pipe, fittings, valves, hydrants and drainage products are our main products, and orders have been exported over the world.

Specification

Material: ductile iron ASTM A536

Size range: DN 80-2600mm

Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm

Manufacture standard: ANSI/AWWA C153

Casting method: lost foam technique

Testing according to ANSI/AWWA C153/A21.53

Annual capacity: 5,000 tons

Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement

Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc.

Package: standard wooden/steel pallets/customers’ requirements

Easy installation at site and service free for life

CE Standard Ductile Iron Pipe Fittings / AWWA C153 MJ×MJ Mechanical Joint Reducer 0

Our Strength

1 Our factory have more 20 year experience OEM DI pipe fitting for Europe and U.S.A high-end market
2 More than 5000 type pipe fitting pattern are used in my facotry .
3 We have automatic moulding line ,which suit for large quantity product.
4 Our fiting according to EN545 ,ISO2531,AWWA C110&C153 ,EN12842 PVC fitting,Flange adaptor,

Universal coupling, Express fitting , MECHANICAL JOINT FITTINGS and Philippines MJ fitting
5 Factory Size:30,000-50,000 square meters;

FAQ

1. What's our process?

For fittings bigger than DN300, we use resin sand cast;

For fittings no bigger than DN300( including DN300), we use clay sand cast.

Green sand with hand moulding and 3 semi-automatic lines are available.

For more detailed info, contact me please.

2. Could we foundry customers brand on castings?

Yes, customers brand marked on products are acceptable.

3. Is third party inspection is available for our castings?

Yes, both foundry in-house and third party inspection are available.

While the third party inspection may should be bear by customers self.
