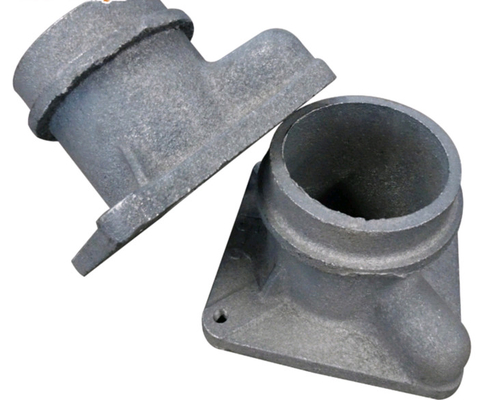

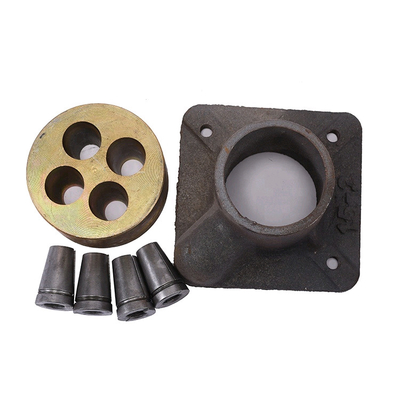

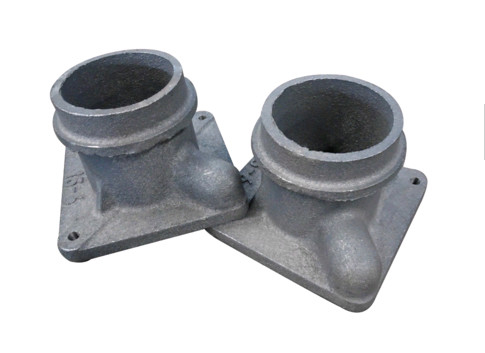

Post Tension Concrete Grouting Anchor Bearing Plate for Round Anchorage
Description
Pretressed anchor plate is to transfer the load of anchoragehead to the key part of concrete under the anchorage.They are co-transfer the load,the stress distribution under theanchorage affects the cracking and carrying capacity of the concrete under the anchorage.
Features
Model | Bearing Plate | Duct | Anchor Head | Spiral Reinforcement | Stressing Jack | |||||
Square | Round | Internal Diameter | φE | F | φG | H | φI | N | ||
A×B | φA×B | |||||||||
YJM15-1 | 80×20 | φ80×20 | 35 | 45 | 48 | 80 | 30 | 8 | 4 | QYC270 |
YJM15-2 | 130×85 | φ135×80 | 50 | 83 | 48 | 120 | 40 | 8 | 4 | YDC650 |
YJM15-3 | 130×87 | φ135×85 | 50 | 87 | 48 | 120 | 40 | 10 | 4 | YDC650 |
YJM15-4 | 140×92 | φ137×100 | 55 | 97 | 48 | 140 | 50 | 10 | 4 | YDC1100 |
YJM15-5 | 150×97 | φ148×122 | 55 | 107 | 48 | 150 | 50 | 10 | 4 | YDC1100 |
YJM15-6 | 165×115 | φ167×136 | 70 | 122 | 50 | 170 | 50 | 12 | 4 | YDC1500 |
YJM15-7 | 173×125 | φ167×136 | 70 | 122 | 50 | 170 | 50 | 12 | 4 | YDC1500 |
YJM15-8 | 180×130 | φ177×150 | 80 | 137 | 53 | 190 | 50 | 12 | 4 | YDC2500 |
YJM15-9 | 190×140 | φ187×150 | 80 | 147 | 53 | 200 | 50 | 12 | 4 | YDC2500 |
YJM15-10 | 195×150 | φ210×160 | 90 | 157 | 53 | 205 | 55 | 14 | 4 | YDC2500 |
YJM15-11 | 209×160 | φ210×160 | 90 | 157 | 55 | 205 | 55 | 14 | 4 | YDC2500 |
YJM15-12 | 210×160 | φ210×185 | 90 | 167 | 55 | 230 | 55 | 14 | 4 | YDC2500 |
YJM15-13 | 217×175 | φ210×185 | 90 | 168 | 55 | 230 | 55 | 14 | 4 | YDC3500 |
YJM15-14 | 225×175 | φ235×185 | 90 | 177 | 58 | 240 | 55 | 14 | 4 | YDC3500 |
YJM15-15 | 238×175 | φ235×185 | 90 | 187 | 60 | 260 | 55 | 16 | 5 | YDC3500 |
YJM15-16 | 238×175 | φ235×185 | 90 | 187 | 60 | 260 | 60 | 16 | 5 | YDC3500 |
YJM15-17 | 250×185 | φ265×200 | 100 | 197 | 63 | 280 | 60 | 16 | 5 | YDC3500 |
YJM15-18 | 270×185 | φ265×200 | 100 | 197 | 63 | 280 | 60 | 16 | 5 | YDC4000 |
YJM15-19 | 270×185 | φ265×200 | 100 | 197 | 65 | 280 | 60 | 16 | 5 | YDC4000 |
YJM15-22 | 295×245 | φ285×260 | 120 | 217 | 70 | 290 | 70 | 18 | 5 | YDC5500 |
YJM15-24 | 310×260 | φ320×260 | 120 | 237 | 75 | 330 | 80 | 18 | 5 | YDC5500 |
YJM15-27 | 310×300 | φ300×300 | 120 | 237 | 80 | 330 | 90 | 18 | 5 | YDC6500 |
YJM15-28/29 | 350×300 | φ330×300 | 130 | 277 | 88 | 330 | 70 | 20 | 6 | YDC6500 |
YJM15-30/31 | 350×300 | φ330×300 | 130 | 277 | 88 | 350 | 70 | 20 | 6 | YDC6500 |
YJM15-32/33/34 | 400×370 | φ390×370 | 140 | 287 | 93 | 400 | 70 | 20 | 6 | YDC6500 |
YJM15-35/36/37 | 400×370 | φ390×370 | 140 | 287 | 98 | 400 | 70 | 20 | 6 | YDC9000 |
Model | Bearing Plate | Duct | Anchor Head | Spiral Reinforcement | Stressing Jack | |||||
Square | Round | Internal Diameter | φE | F | φG | H | φI | N | ||
A×B | φA×B | |||||||||
YJM13-1 | 70×70 | - | 35 | 42 | 43 | 60 | 30 | 6 | 3 | QYC270 |
YJM13-2 | 115×100 | - | 45 | 77 | 46 | 120 | 30 | 8 | 3 | YDC650 |
YJM13-3 | 120×130 | φ132×80 | 45 | 83 | 46 | 120 | 40 | 10 | 3 | YDC650 |
YJM13-4 | 135×130 | φ135×102 | 50 | 87 | 46 | 135 | 50 | 10 | 3 | YDC650 |
YJM13-5 | 145×130 | φ140×125 | 50 | 97 | 46 | 140 | 50 | 10 | 4 | YDC1100 |
YJM13-6/7 | 160×130 | φ155×130 | 60 | 107 | 46/48 | 160 | 50 | 12 | 4 | YDC1100 |
YJM13-8 | 170×150 | φ170×160 | 60 | 117 | 50 | 170 | 50 | 12 | 4 | YDC1500 |
YJM13-9 | 180×150 | φ175×160 | 70 | 127 | 50 | 180 | 50 | 12 | 4 | YDC1500 |
YJM13-10 | 195×160 | φ200×180 | 80 | 137 | 50 | 200 | 50 | 14 | 4 | YDC1500 |
YJM13-11 | 195×160 | φ200×180 | 80 | 137 | 53 | 200 | 50 | 14 | 4 | YDC2500 |
YJM13-12 | 215×180 | φ210×190 | 80 | 147 | 53 | 210 | 50 | 14 | 5 | YDC2500 |
YJM13-13 | 230×180 | φ210×190 | 80 | 147 | 53 | 210 | 50 | 14 | 5 | YDC2500 |
YJM13-14 | 230×180 | φ210×210 | 80 | 157 | 55 | 220 | 50 | 14 | 5 | YDC2500 |
YJM13-15 | 240×220 | φ215×230 | 90 | 167 | 55 | 220 | 50 | 14 | 5 | YDC2500 |
YJM13-16 | 240×220 | φ245×240 | 90 | 167 | 55 | 240 | 60 | 16 | 5 | YDC3500 |
YJM13-17 | 240×220 | φ245×240 | 90 | 177 | 60 | 240 | 60 | 16 | 5 | YDC3500 |
YJM13-18 | 270×220 | φ245×240 | 90 | 177 | 60 | 260 | 60 | 16 | 5 | YDC3500 |
YJM13-19 | 270×220 | φ245×240 | 90 | 177 | 60 | 260 | 60 | 16 | 5 | YDC3500 |
YJM13-20 | 290×235 | φ260×270 | 90 | 186 | 60 | 270 | 60 | 16 | 5 | YDC3500 |
YJM13-21/22 | 290×245 | φ260×270 | 90 | 197 | 65 | 270 | 60 | 16 | 5 | YDC3500 |
YJM13-23/24 | 300×245 | φ275×290 | 100 | 217 | 70 | 280 | 60 | 18 | 6 | YDC4000 |
YJM13-25/26/27 | 300×245 | φ275×290 | 100 | 217 | 75 | 280 | 60 | 18 | 6 | YDC4000 |
YJM13-28/29 | 315×250 | φ300×330 | 105 | 227 | 80 | 310 | 60 | 18 | 7 | YDC5500 |
YJM15-30/31 | 315×250 | φ300×330 | 105 | 227 | 80 | 310 | 60 | 18 | 7 | YDC5500 |
YJM15-32/33/34 | 350×320 | φ330×350 | 120 | 247 | 85 | 350 | 60 | 20 | 7 | YDC5500 |
YJM15-35/36/37 | 370×320 | φ330×350 | 120 | 247 | 85 | 350 | 60 | 20 | 7 | YDC550 |
Application
Post-Tensioning Systems are known in china for reliability and performance, most suitable for all applications in post-tensioned construction. They embrace the whole spectrum from bridge construction,buildings, to civil applications, above and underground.
