Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	NC811
Certification:	ISO9001,SGS
Model Number:	811

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	$1-50
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	60,000 sets

Contact Now

Detailed Product Description

Product Name:	Prestressing Flat Anchorage	Type:	Flat,round
Material:	40Cr Or Customized	Support With:	Pc Starnd,jack,pump
Specification:	2-5 Hole	Usage:	Concrete Construction Support
Feature:	Easily Assembled
High Light:	post tension accessories , prestressed anchorage

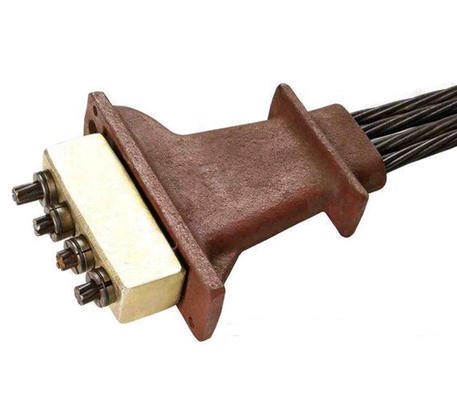

Flat Prestressed Anchorage PC Strand Prestressed Anchor for Bridge Construction

Description

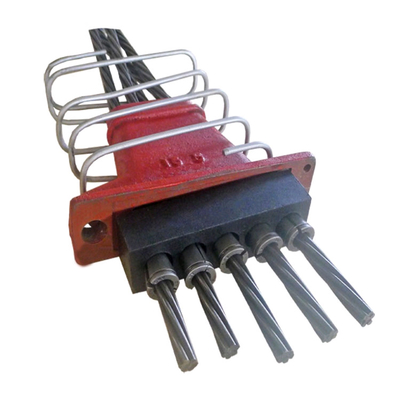

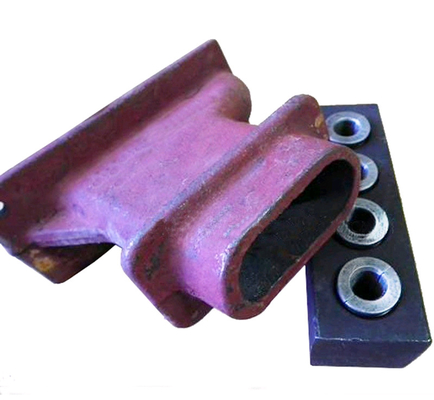

A set of prestressed round anchorage consists of anchor head, bearing plate, anchor wedge, spiral reinforcement . It is usually used with plastic or metal corrugated ducts, PC strands(PC wire bundle).The anchorage divides into two round anchorage and flat anchorage. Round anchorage is called YM series. Flat anchorage is called BM series.

Application

Prestressed anchors can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.
Our company can design and produce anchorages of any specifications in accordance with demands of customers.

Specification

TYPE	BM13-2	BM13-3	BM13-4	BM13-5
ANCHOR HEAD (mm)	80 48 50	110 45 45	140 45 45	170 45 45
ANCHOR PLATE (mm)	140 150 80	150 160 70	175 200 70	200 230 70
CORRUGATED DUCT (mm)	50 22	60 22	74 22	90 22

Bridge Construction Flat Prestressed Anchorage / PC Strand Prestressed Anchors 0

About Us

We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.

FAQ

Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples for free, but the express cost would be on buyer’s account.
Q:How long is your delivery time?
A:Generally it will be 5 to 15 days according to quantity and type of the products.
Q:What is your terms of payment?
A:We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
