Locking System Folding Cast Iron Manhole Cover Square Frame For Road Facilities
About Us
We're a leading manufacturer in making ductile cast iron manhole cover, Round manhole cover, Square manhole cover, Double ductile covers, Rain grate, gully grates which have been sold well all around the word due to the competitive price and superior quality.
We can provide Heavy Duty Manhole Cover with the best production capability, best quality control, Best Service for our customers. All of our products are 100% QC inspection before shipment. We sincerely hope that there is a chance we can work together in near future.
Features
1. Locking system: This product with hinge and lock. Making it easier operation and higher safety.
2. Customized logo and Inscription: Inscription can be customized according to the client company name, it can be changed according to customer needs. Logo can be designed on the basis of customer's requirement.
3. Surface Pattern: Our company can offer paid pattern design on the basis of customer's requirement for special surface pattern.
Specification

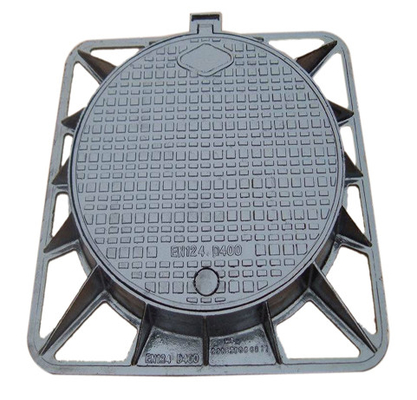

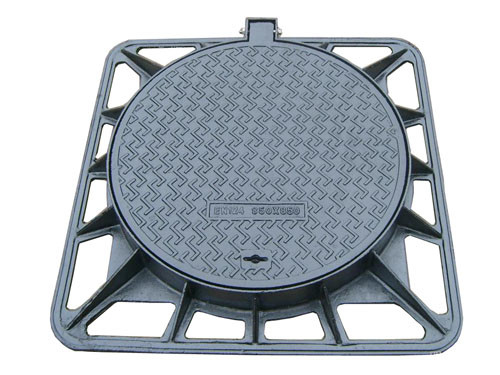

Ductile Cast Iron Round Cover with Square Frame
Material: ductile iron GGG50
Coatings: Anti-rust Black Bitumen Paintings
Loading Ability: A15, B125, C250, D400, E600, F900
Ductile Iron Round Covers Specifications
Overall Frame Dimension: Φ 850mm
Clear Opening Dimension: Φ 600mm
Frame total Height:100mm
Unit weight: 45-56kg
Loading Ability: D400(400KN)
|
Ductile Iron Manhole Cover
and Grating
|
EN124:1994 |
Material: GGG500-7 |
| Class |
Application |
Dimension (Frame mm) |
| A15 |
Pedestrians, Pedal Cyclists |
Dia760 |
| B125 |
Footways, Pedestrians, Car parks |
290*290, dia800 ... |
| C250 |
Kerbside channel of roads |
700*700, 600*800 ... |
| D400 |
Road, hard shoulders etc. |
850*850, 920*920 ... |
| E600 |
Docks, aircraft pavements etc. |
as per your demands |
| F900 |
Aircraft pavements etc. |
as per your demands |
Advantages of our factory
1. High quality products at unbeatable prices
2. Can supply all kinds of load class Product such as A15 / B125 / C250 / D400 / E600 / F900
3. Against theft and safety, double sealed, watertight type material No. GGC50(DIN1693-73), QT500-7(GB / T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001), 500 / 7(BS2789:1985).
84 Free charge of design.
Our related products
Packaging and Shipping
Fumigated wooden pallet or iron pallet with iron wire; or according to client's requirement.;
Shipping; Door-to-Door; By Air or by Sea for batch goods; for FCL; Airport / Port receiving; Customers specifying freight forwarders or negotiable shipping methods!
Delivery Time: 3-7 days for samples; 5-25 days for batch goods
Payment: T/T; 30% deposits; 70% balance before delivery.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
