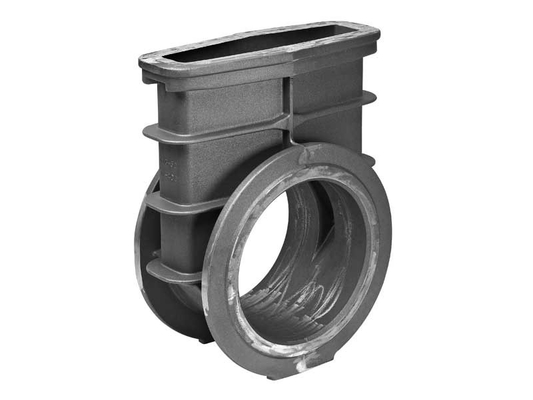

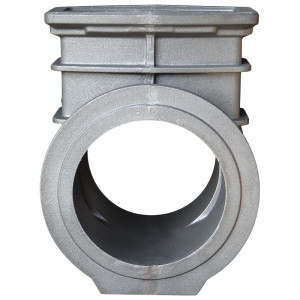

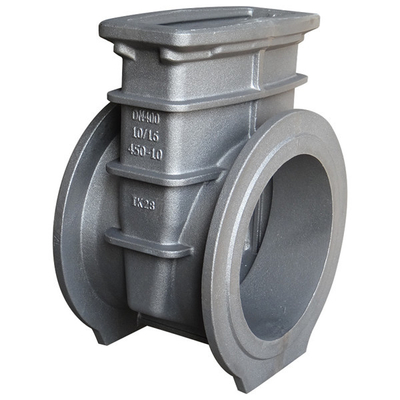

Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16

Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16

  • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
  • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
  • Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16
Product Details:
Place of Origin: Ningbo China
Brand Name: NC140
Certification: ISO 9001
Model Number: 140
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case, Plywood, Crate, Pallet
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 100,000 per month
Contact Now
Detailed Product Description
Part Name: Gate Valve Body Material: Ductile Iron
Casting Method: Thermal Gravity Casting Surface Roughness:: Ra0.4
Sand Core Type: Resin Sand Core Usage: Regulation, Flow Control, Drinking Water
Application: Industrial Usage, Water Industrial Usage Specification: DN350-DN1200
High Light:

sand casting process

,

stainless steel sand casting

Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16



Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Grey Iron, Ductile Iron Castings and and any other precision castings for more than 25 years. Products include valves, valve bodies, valve parts for gate valve, check valve, butterfly valve. Our technical team has more than 30 years working experience on cast iron area.


We can offer Casting and sand casting parts according to your requirement:

Cast Iron Material: Grey Iron / Gray Iron, Ductile Iron.

Process: Gray Iron Castings, Ductile Iron Castings, Sand Casting, Automatic Molding, Machine Molding, Shell Molding, Green Sand Casting, Resin Sand Casting, Medium Frequency Electric Furnace

Weight range: 1KG-2TON

Application: Industrial parts, Machinery parts, hardware, construction parts, valve / valve parts, train, craft, door handle, hinge, hydraulic pressure, construction, agricultural machinery.

Surface treatment, painting, zinc plating, machining center, powder coating, Shot Blast, etc.

ISO9001 SGS

OEM service available



Casting Material



Item Description Material Technical Process
1

Ductile iron

castings

ASTM A65-45-12

DIN-GGG40

JIS-FCD40

BS-Gr420-12

Green sand moulding

Resin sand moulding

Lost foam cast

Shell core cast

Electric furnace melting

2

Grey iron

castings

ASTM A126-Class B

DIN-GG25

JIS-FC25

BS-Grade220

NF-FGL250

Green sand moulding

Resin sand moulding

Lost foam cast

Shell core cast

Electric furnace smelting

3

Carbon steel

castings

ASTM A216-Gr. WCB



Soluble glass sand moulding

Resin sand moulding

Lost wax casting

(Investment casting)

Lost foam cast

Shell core cast

Electric furnace smelting

4

Stainless steel

castings

ASTM A351 CF-8M, CF-8,

ASTM A351 CF-3M, CF-3

ASTM A890-4A, A890-5A



Soluble glass sand moulding

Resin-sand moulding

Lost wax casting

(Investment casting)





Specification



Gate Valve Design Standard DIN3352 / EN1171 F4 F5 or BS5163
Test Standards: API598 and EN 12266
Rising stem or non rising stem
Pressure: PN10, PN16 and PN25
Body materials: Ductile iron, GG25, GGG40
Surface Finish: Sand blasting or epoxy powder, coated inside and outside minimum 250μ Or Epoxy Paint
Size Scope: DN350-DN1200 14"--48"





Industrial Parts Flanged Gate Valve Body Casting Flow Controlling DIN Pn16 0



Quality Control

1. 100% Inspection before shipment, send you the cargo pictures with details include marking, packing, testing to you together with a Test Report.

2. 18 months quality Guarantee.

3. Any third party Inspection is acceptable.





Our Advantages


1. Newly developed facilities ensure high and stable quality.

2. Experienced technology.

3. Excellent after-sale service to satisfy customers.

4. Sufficient capacity ensures prompt delivery.

5. Continuous quality improvement and new designs development.

6. Reasonable and stable price.

7. Meets different countries standards, such as ANSI, DIN, BS etc.

8. We are applying for LR,DNV, Foundry Works Approval.

Our main market: Eastern Europe, Western Europe, North America, Mid Africa, Central America, Australia
